Model NO.
JGL-125A
Operation
Handle Directly
Certification
CCC, CE, ISO9001
Type
Load Isolation Switch
Poles
4P
Output type
Dual
Impulse Voltage
6-8-12kv
Rated Connect Capacity
10le a
Rated Break Capacity
8le a
Mechanical Life
5000
Case Material
Glass Fiber
Auxiliary Contacts
Copper with Silver Coated
Installation Way
Front,Side Install
Operate Mechanism
Spring Energy Storage
Operate Torque N.M
3.5-60 N.M
Short Afford Current
3-50ka
Delivery Port 1
Shanghai
Delivery Port 2
Yiwu
Transport Package
Wooden Pallet
Specification
CE ROHS
Trademark
OEM
Origin
Zhejiang Yueqing
HS Code
85385000
Production Capacity
100000PC/Month
Product Description

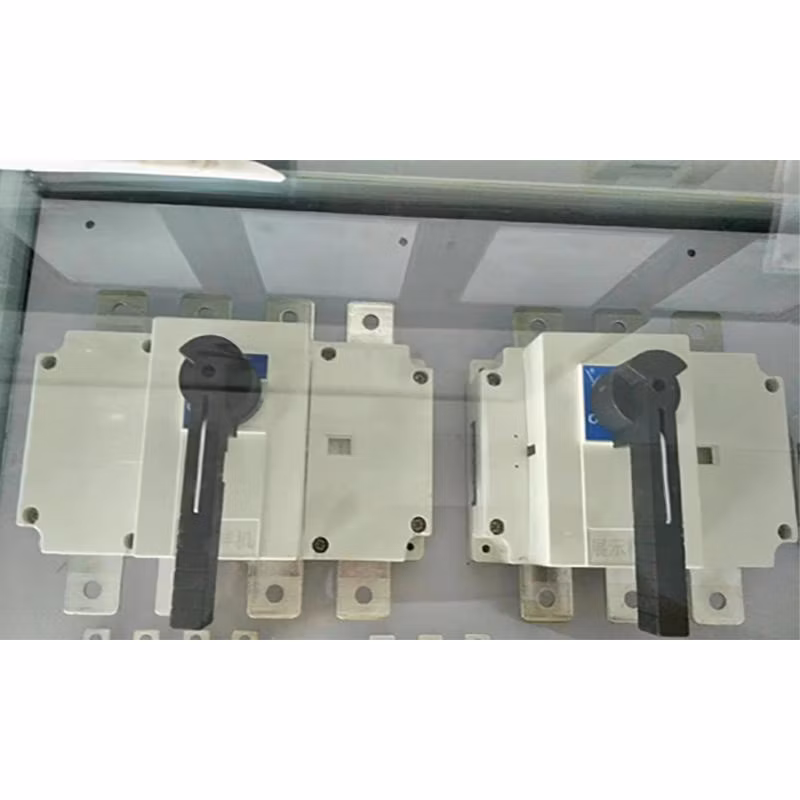

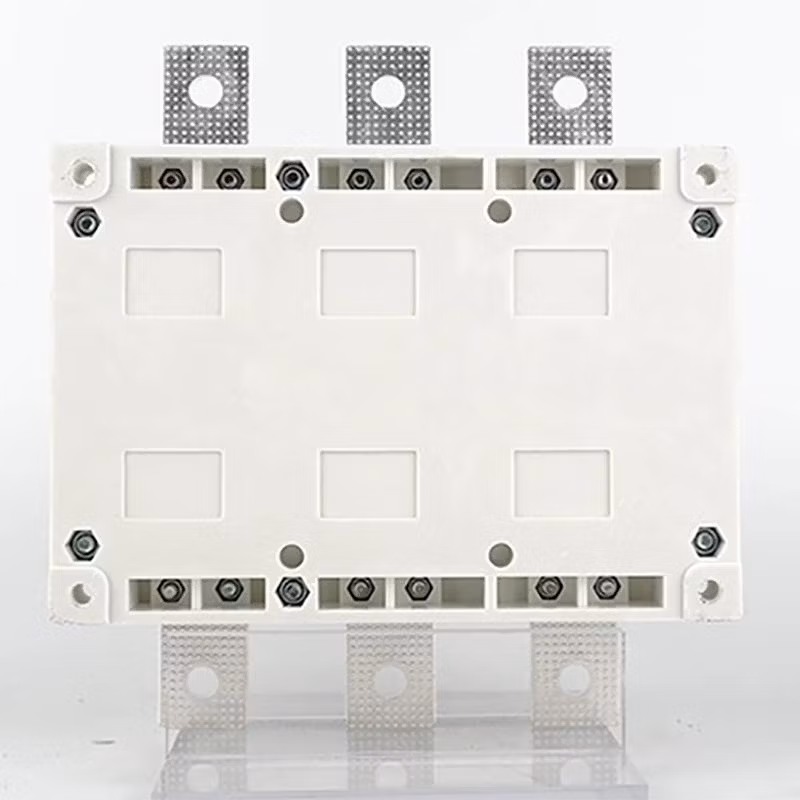

125A static transfer switch price for emergency fire automatic transfer switch panel
Product characteristics
1. The acceleration mechanism of instantaneous release of spring energy storage realizes fast on or off (13.8 M / s), which is independent of the speed of the operating handle and greatly improves the ability of arc extinguishing.
2. The shell made of glass fiber reinforced unsaturated polyester resin has good flame retardant, dielectric, carbonation and impact resistance.
3. The parallel double break point contact has self-cleaning function.
4. All contact materials are copper silver alloy with two separate contact surfaces.
5. Large isolation distance.
6. When it is in "0" position, three locks can be used to lock the handle at the same time to avoid misoperation.
Specification
| Use range | Distribution system and automation system in petrochemical industry,Construction ,power , |
| Case material | Glass fiber reinforced unsaturated polyester |
| Operate mechanism | Acceleration mechanism with spring energy storage and instantaneous release Instantaneous on-off double break contact mechanism Front operation, |
| Function | Rated voltage 660v DC Rated voltage 440v from 100-3150Amp, Used for infrequent connection and disconnection of circuit and line isolation |
Product characteristics
1. The acceleration mechanism of instantaneous release of spring energy storage realizes fast on or off (13.8 M / s), which is independent of the speed of the operating handle and greatly improves the ability of arc extinguishing.
2. The shell made of glass fiber reinforced unsaturated polyester resin has good flame retardant, dielectric, carbonation and impact resistance.
3. The parallel double break point contact has self-cleaning function.
4. All contact materials are copper silver alloy with two separate contact surfaces.
5. Large isolation distance.
6. When it is in "0" position, three locks can be used to lock the handle at the same time to avoid misoperation.
Specification
| Conventional thermal current lth A | 63A | 100A | 160A | |||||
| Rated current A | 40 | 63 | 80 | 80 | 125 | 160 | ||
| Rated impulse withstand voltage Ui(A) | 750 | 750 | 750 | 750 | 750 | 750 | ||
| Dielectric strength(V) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | ||
Rated Working Current le A | 380V | AC-21 | 40 | 63 | 80 | 80 | 125 | 160 |
| AC-22 | 40 | 63 | 80 | 80 | 125 | 160 | ||
| AC-23 | 40 | 50 | 80 | 80 | 125 | 160 | ||
660V | AC-21 | 40 | 50 | 80 | 80 | 125 | 160 | |
| AC-22 | 32 | 32 | 50 | 50 | 125 | 160 | ||
| AC-23 | 254 | 25 | 40 | 40 | 80 | 80 | ||
Motor power P 380V KV | 380V | 18.5 | 25 | 40 | 40 | 63 | 80 | |
| 660V | 22 | 22 | 33 | 33 | 75 | 75 | ||
| Rated breaking capbility(A rins)AC23 380V | 320 | 504 | 640 | 800 | 1000 | 1000 | ||
| Rated making capability(A Rms)AC23 380V | 400 | 630 | 800 | 1000 | 1250 | 1250 | ||
| Rated short-current making capability lcm(kA peak value) | 7.5 | 7.5 | 10 | 10 | 12 | 12 | ||
