Product Description

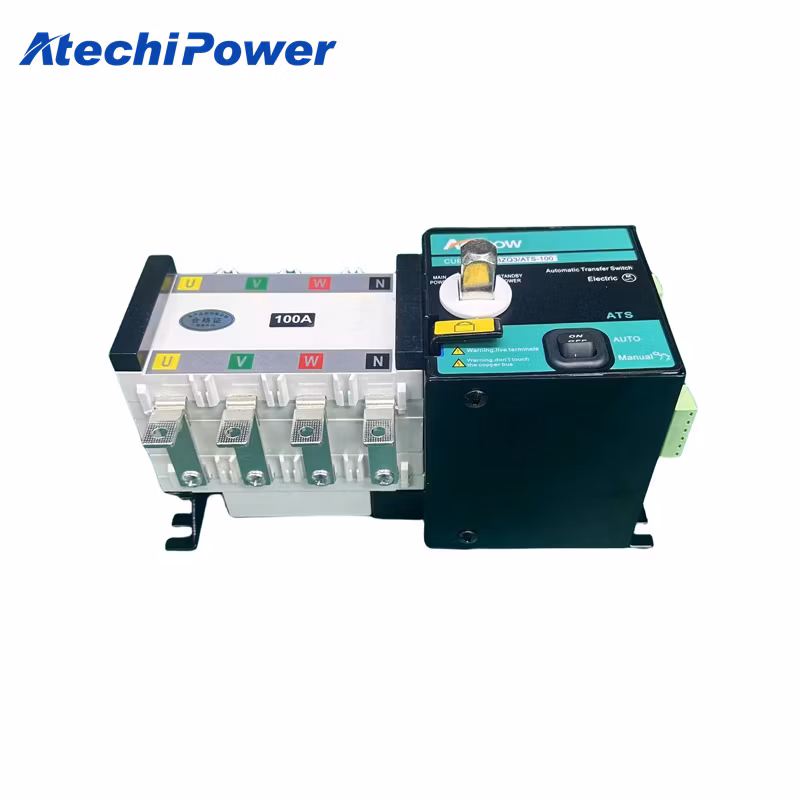

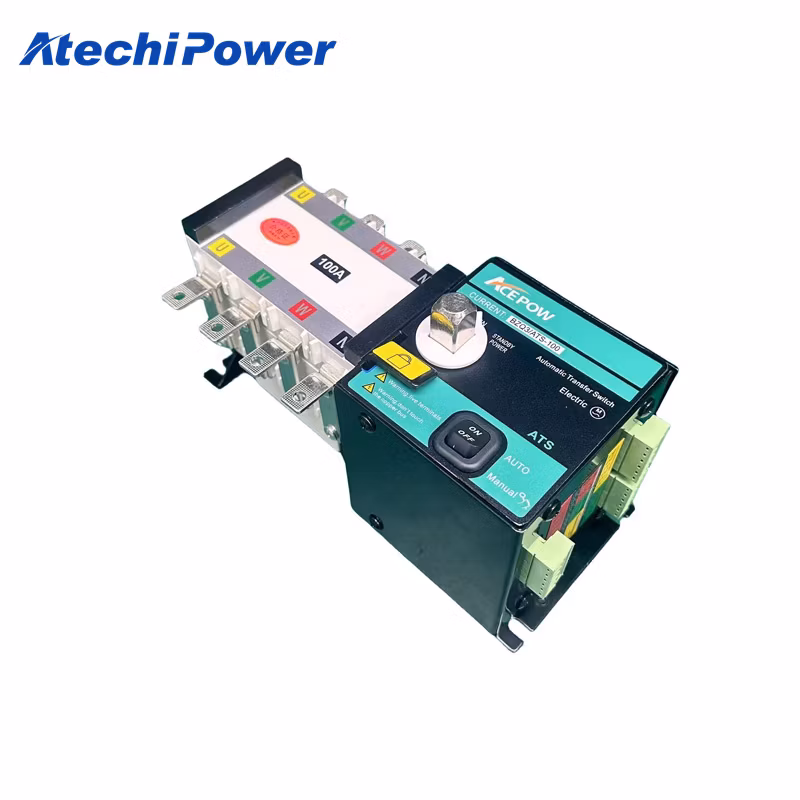

ATS (automatic transfer switch), is an integrated three-stage switch with fire protection function. This series of switches are PC level switches, which are composed of switch body and conversion control. They are driven by electromagnetic coil and have electrical and mechanical interlocking structure. They have fast conversion speed and can realize the rapid switching of two power supplies. The power supply of conversion controller adopts AC220V of common or standby power supply as the working voltage.
| Rated current ln(A) | 16/20/25/32/40/50/63/80/100 |
| Rated insulation voltage | 690V |
| Rated concussion withstand voltage(Uimp) | 8KV |
| Rated working voltage(Ue) | AC400V |
| Using category | AC-33B |
| Rated short-circuit connection capacity | 8KA |
| Rated short-time withstand current(Icw) | 5kA/60ms |
| Transfer time I-0 or 0-I | 1.2s |
| Transfer time I-II or II-I | 2.5s |
| Load off time | 1.2s |
| Control voltage | AC220V (176~265)V |
| Motor starting rated power | 200W |
| Normal rated power of motor | |
| Mechanical life | 10000 |
| Electrical life | 1500 |
| Power frequency interference withstand voltage | 2000V/min |
| Degree of protection | IP20 |
| Altitude | <2000m |
| Working conditions | Temperature: - 25 ~ + 70 ºC, humidity: 20 ~ 90% |
Atechi Power Machinery Co., Ltd. is a professional supplier of generator spare parts and accessories. We provide full range of spare parts and accessories for generating set which include control module, sensors, meters, fuel pumps, mains floating charger, relay, engine starter, DC alternator, solenoid, lock and hinges, soundproof material, ATS etc.
in one word, Atechi aims to provide one-stop service for your generator spare part demand. The quality of our spare parts is very reliable because we have used original and genuine spare parts used by the original engine manufacturer. For instance, engine manufacturer A is using B Company's engine starter, then we buy directly from B Company for engine starter. We use some famous products such as Woodward stop solenoid, Fleetguard filters, Mitsubishi starter motor and alternator etc. We also are very familiar with quality parts and accessories suppliers in China. Engine brands we serve Those engine brands which we can provide spare parts service includes LOVOL, Yangdong, Weichai, YTO, WEICHAI DEUTZ, Volvo, etc. The staff of Atechi Machinery is honest, responsible and considerate. They are with good experience in generator industry, too. That's because Atechi people clearly understand that good service, good products and being innovative are the key factors to survive and develop in a time full of fierce and transparent competition.
