Basic Info.
Model NO.
L16A-C2K40. Q1P
Principle
Metal
Application
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type
Normal Open
Number of Switch
Double Control Switch
Structure
Power Built-in Type
Usage
Control Button, Start Button, Limit Button, Reset Button, Check Button
Kind
Single-pole on-off Switch
Contact Type
Type b Contact
Detection Method
Retro-reflective Mode
Brand
FUJI
Certification
CE
Model
L16A-C2k40.Q1p
Transport Package
Carton
Trademark
CNRUIHUA
Origin
China
Production Capacity
10000 PCS Per Month
Product Description
Hot Selling Led Push Button Switch With Lamp
Characteristics
Working temperature: -20-- +55° C
Working humidity: 40~85%RH ( No condensation)
Contact force: 0.3N(30g)
Insulation resistance: ≤ 50mΩ
Contact resistance: ≥ 100mΩ
Rated insulation voltage: 250V, AC/DC
Max pressure:
Between the contact and the lamp beads 2000V, AC50Hz, min
Between sibling terminal 1000V, AC50Hz, min
Between the electrode terminal 2000V, AC50Hz, min
Anti-vibration ability:
50Hz Amplitude
1.2mm
Impact resistance: ≥ 10g
Operating force: 2-5N
Operating distance: (button)3mm
Life time
1. Machine:
Self-settable button: 1, 000, 000 times
Self-locking button: 500, 000 times
Key button: 200, 000times
2. Electric ≥ 50, 000times
Contact materialSilver
Silver alloy
Silver-plated,
Plating thickness 3μ M
IP grade IP40(sealed) IP65(waterproof)
Notes: AC inductive load PF0.6-0.7
DC inductive load L/R=7msec
Minimum load (Ref. ) 5V, 1mA AC/DC
About US
YUEQING CITY RUIHUA CABINET WHOLE SET EQUIPMENT is a professional manufacturer of low voltage electrical products in South China.
Our company is committed to design, production and sale of a series of ozone generator, air pump, PLC, rotary encoder, HMI, sensor, switches,
lights, meter and much more other electrical components. And exports various type of electrical appliances to different countries.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. CNRUIHUA people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gotten through CE, RoHs standard.
About Payment
we provided Trade Assurance service
we also accept payment by T/T; Western Union, ESCROW, Paypal, money gram
We Provide OEM Services
We can do OEM for your brand (print your logo ). And we can make product according to your design .The processing method ,the size ,the quality etc ,will all follow your requirement .
We do OEM for a lot of the world's leading brands ,we have rich experience in production ,we have molds in variety ,and we have products strict quality control system.
We have a strong r&d team, can according to the sample you provided, manufacture the same product as your sample.
Characteristics
Working temperature: -20-- +55° C
Working humidity: 40~85%RH ( No condensation)
Contact force: 0.3N(30g)
Insulation resistance: ≤ 50mΩ
Contact resistance: ≥ 100mΩ
Rated insulation voltage: 250V, AC/DC
Max pressure:
Between the contact and the lamp beads 2000V, AC50Hz, min
Between sibling terminal 1000V, AC50Hz, min
Between the electrode terminal 2000V, AC50Hz, min
Anti-vibration ability:
50Hz Amplitude
1.2mm
Impact resistance: ≥ 10g
Operating force: 2-5N
Operating distance: (button)3mm
Life time
1. Machine:
Self-settable button: 1, 000, 000 times
Self-locking button: 500, 000 times
Key button: 200, 000times
2. Electric ≥ 50, 000times
Contact materialSilver
Silver alloy
Silver-plated,
Plating thickness 3μ M
IP grade IP40(sealed) IP65(waterproof)
Notes: AC inductive load PF0.6-0.7
DC inductive load L/R=7msec
Minimum load (Ref. ) 5V, 1mA AC/DC
| Product legends | |||||
| Outline | Contact | Operation types | IP Grade | Model NO. | Remarks |

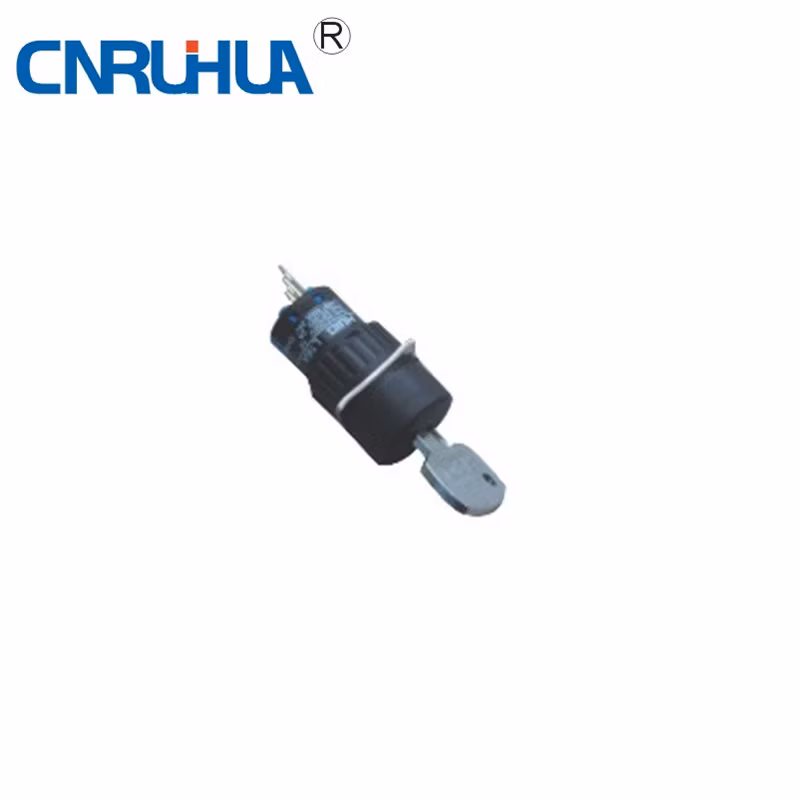

| Round | SPDT | 90°-2 location | IP40 | L16A-C2K40.Q1P | Keys can be pulled out in two locations. Two keys are offered, all the keys are universal. |
| IP65 | L16A-C2K65.Q1P | ||||
| DPDT | 90°-2 location | IP40 | L16A-C2K40.Q2P | ||
| IP65 | L16A-C2K65.Q1P | ||||
| 45°-3 location | IP40 | L16A-C3K40.Q1P | |||
| IP65 | L16A-C3K65.Q1P | ||||
| Characteristics | ||||||
| Working temperature | -20° C -- +55° C | insulation resistance | ≤50mΩ | |||
| Working humidity | 40~85%RH ( No condensation) | contact resistance | ≥100mΩ | |||
| contact force | ≈0.3N(30g) | rated insulation voltage | 250V,AC/DC | |||
| Max pressure | Between the contact and the lamp beads 2000V,AC50Hz,min | |||||
| Between sibling terminal 1000V,AC50Hz,min | ||||||
| Between the electrode terminal 2000V,AC50Hz,min | ||||||
| anti-vibration ability | 50Hz Amplitude ≈1.2mm | Operating force | 2-5N | |||
| impact resistance | ≥10g | operating distance | (button)≈3mm | |||
| Life time | Machine | Self-settable button | 1,000,000 times | Contact material | Silver Silver alloy Silver-plated, plating thickness 3μm | |
| Self-locking button | 500,000 times | |||||
| key button | 200,000times | |||||
| Electric | ≥50,000times | |||||
| IP grade | IP40(sealed) IP65(waterproof) | |||||
| Contact capacity | |||||
| Max voltage | 250V AC/DC | ||||
| Thermocurrent | 3A | ||||
| Working voltage | 24V | 110V | 220V | ||
| Current | AC250V/50Hz | resistive current | -- | 1.0A | 0.5A |
| reactive current | -- | 0.7A | 0.5A | ||
| DC | resistive current | 1.0A | 0.2A | -- | |
| reactive current | 0.7A | 0.1A | -- | ||
| Contact material | Gold-silver-plated contact | ||||
