Basic Info.
Model NO.
LW28GS-125
Standard
Standard
Structure
Self-Locking
Operation
Open Type
Certification
ISO, RoHS, CE
Condition
New
Current
20,25,32,63, 125, 160A
Voltage
440V
Transport Package
Carton Box
Trademark
PAGELE/OEM
Origin
P. R. China
HS Code
853650000
Production Capacity
10000PCS/Month
Product Description

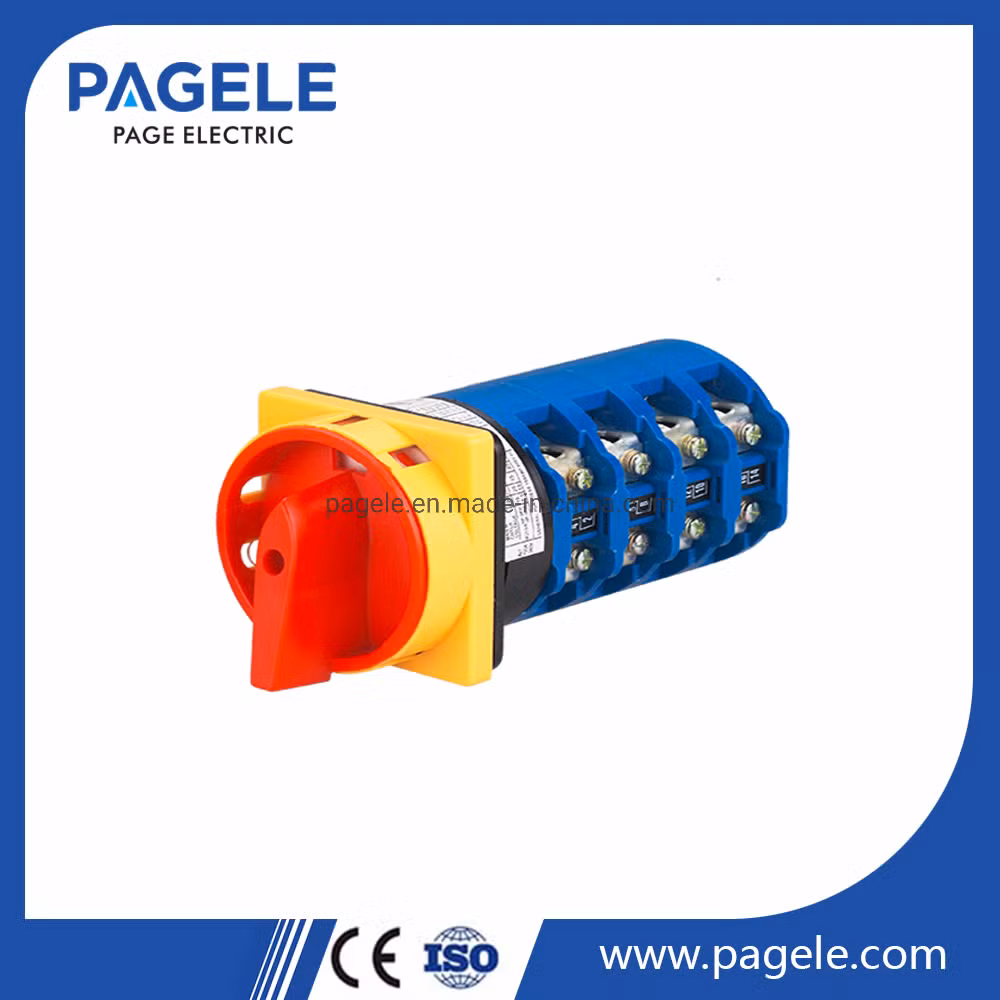

Power Cut-off Universal Transfer Switch
Normal Working Conditions
1. The ambient air temperature does not exceed +40º C, the average temperature
Within 24 hours and not more than +35º C.
2. The ambient air temperature is not lower than -5º C.
3. Installation site altitude does not exceed 2000m.
4. The relative humidity of the air no more than 50% when the maximum
Temperature is +40º C and at a lower temperature allows a higher relative
Humidity, such as when temperature is 20º C the relative humidity reach 90%.
To condensation occasionally due to temperature changes should take special
Measures.
Certificate
FAQ
PACKAGE & SHIPMENT
CONTACT US
Normal Working Conditions
1. The ambient air temperature does not exceed +40º C, the average temperature
Within 24 hours and not more than +35º C.
2. The ambient air temperature is not lower than -5º C.
3. Installation site altitude does not exceed 2000m.
4. The relative humidity of the air no more than 50% when the maximum
Temperature is +40º C and at a lower temperature allows a higher relative
Humidity, such as when temperature is 20º C the relative humidity reach 90%.
To condensation occasionally due to temperature changes should take special
Measures.
| 1.Specifications | ||||||||||||||
| Type | Ith A | Ui V | Ue V | AC-21A AC-22A AC-23A AC-2 AC-3 AC-4 AC-15 DC-13 | ||||||||||
| Ie | Ie | Ie | P | Ie | P | Ie | P | Ie | P | Ie | ||||
| A | A | A | kw | A | kw | A | kw | A | kw | A | ||||
| 20 | 660 | 440 | 20 | 20 | 15 | 7.5 | 15 | 7.5 | 11 | 5.5 | 3.5 | 1.5 | 4 | |
| LW28-20 | 240 | 5 | ||||||||||||
| 120 | ||||||||||||||
| 25 | 440 | 25 | 25 | 22 | 11 | 22 | 11 | 15 | 7.5 | 6.5 | 3 | 5 | ||
| LW28-25 | 240 | 8 | ||||||||||||
| 120 | ||||||||||||||
| 32 | 440 | 32 | 30 | 15 | 30 | 15 | 22 | 11 | 11 | 5.5 | 6 | |||
| LW28-32 | 240 | 14 | ||||||||||||
| 120 | ||||||||||||||
| LW28-63 | 63 | 440 | 63 | 57 | 30 | 57 | 30 | 36 | 18.5 | 15 | 7.5 | |||
| 120 | ||||||||||||||
| LW28-125 | 125 | 125 | 125 | 125 | 100 | 45 | 100 | 45 | 50 | 22 | 18 | 12 | ||
| LW28-160 | 160 | 160 | 160 | 160 | 115 | 57 | 115 | 57 | 65 | 33 | 25 | 15 | ||
